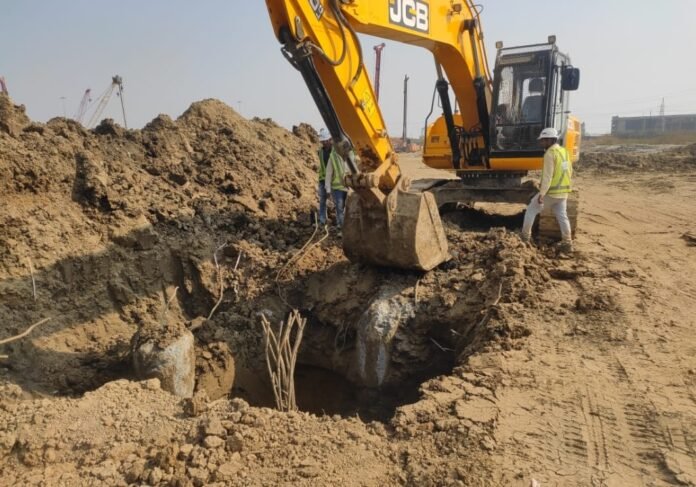

Introduction to Soil Types in Excavation
Understanding the various soil types relevant to excavation is very important for ensuring safety and efficiency. Different soils exhibit unique characteristics that seriously influence excavation techniques and safety measures. The primary soil types discussed in excavation practices include solid rock, Class A, Class B, and Class C soils. Each type presents distinct challenges and properties, which impact the planning and execution of excavation projects.
Solid rock is the most stable soil type, characterized by a high degree of rigidity and strength. Excavating solid rock typically requires specialized equipment and techniques, as traditional excavation methods may not be applicable. Operators must account for the potential risk of rock falls and ensure that appropriate protective measures are in place. The inherent stability of solid rock can, however, offer a solid foundation for subsequent construction activities.
Class A soils are cohesive soils that generally demonstrate good stability. These soils have a high load-bearing capacity, which allows for safer vertical excavations without extensive support systems. The cohesive properties of Class A soils can enable the excavation work to proceed at a more rapid pace while ensuring adequate support. Nevertheless, it is still very important to assess any moisture conditions or environmental factors that could affect soil stability.
Class B soils are described as intermediate soils, exhibiting a mix of cohesive and granular properties. They function moderately but require effective management practices to mitigate potential hazards. When excavating Class B soils, it’s essential to use sloping techniques or protective systems to maintain a safe work environment.
Class C soils are predominantly granular and less cohesive, which can lead to instability during excavation. This type of soil is susceptible to erosion, and additional precautions, such as shoring or trench boxes, may be necessary to ensure the safety of workers.
Grasping the characteristics of these soil types is imperative in planning and executing excavation projects. Correctly identifying and understanding the type of soil present allows for the appropriate selection of techniques and safety protocols, ultimately leading to a safer work environment and successful project completion.
Slope Maintenance Requirements for Different Soil Classes
The specific slope maintenance requirements for excavation based on soil classes is important to promoting safety during construction activities. According to the Bureau of Indian Standards BIS -3764, various soil classifications display differing characteristics, necessitating tailored slope maintenance protocols to prevent collapses or accidents. Soil is broadly categorized into Class A, Class B, Class C, and solid rock, each exhibiting unique behaviors when subjected to excavation.
For Class A soils – which are typically cohesion-rich, the maximum allowable slope angle is 53 degrees. This steep angle allows for efficient excavation while retaining adequate stability. Proper slope maintenance techniques, such as soil compaction and the installation of drainage systems, are essential in maintaining the integrity of the slope and preventing washouts or slides.
Class B soils – which possess lower cohesion but higher shear strength, require a maintenance slope angle of 45 degrees. Although still relatively steep, the reduction in angle accommodates the soil’s reduced strength, allowing excavation to proceed safely.
Class C soils – categorized as loose or granular soils, pose risks during excavation due to their lower density and cohesion. Therefore, the recommended maximum slope angle for these soils is reduced to 34 degrees. To enhance slope stability in these conditions, additional measures such as the installation of retaining walls or the use of soil stabilization techniques may be necessary.
Solid rock – presents a different scenario altogether, permitting vertical excavations or a maximum angle of 90 degrees, which requires minimal slope maintenance but still demands proper safety measures to protect workers.
Safety Guidelines as per BIS 3764
The Bureau of Indian Standards (BIS) has established guidelines within IS 3764 to enhance safety during excavation tasks. These guidelines address various safety measures that should be taken to mitigate risks associated with soil instability and the dangers posed by heavy construction vehicles. One important aspect is the maintenance of proper distances for equipment operating near excavated areas. This is to prevent possible accidents stemming from ground failure or cave-ins.
According to BIS 3764 – Construction vehicle such as excavating machinery and road traffic shall be kept back from the excavated sides at a distance not less than the depth of trench or at least 6 m for trench deeper than 6 m.
Workers should be informed of the potential hazards associated with working near excavation sites. Implementing proper barricades and warning signs is most important in keeping unauthorized personnel at a safe distance from the edges of excavations. Training employees in recognizing and adhering to these safety guidelines not only reduces the likelihood of accidents.
Furthermore, it is required that regular inspections and assessments of contractor practices are conducted to ensure that regulations set forth by BIS 3764 are being strictly followed.
