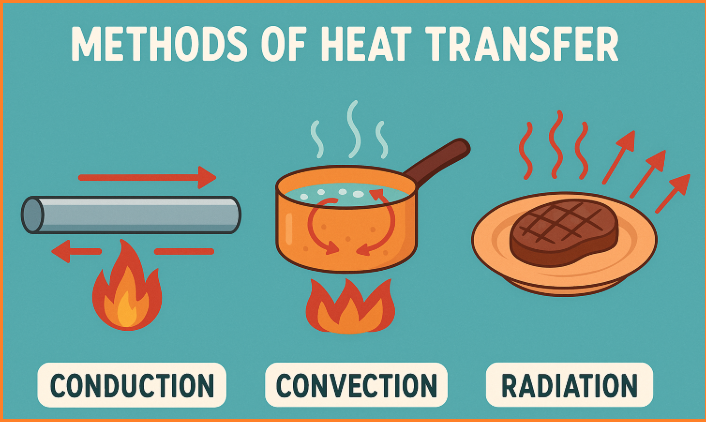

When it comes to fire safety, understanding how heat moves is not just theoretical — it can mean the difference between preventing a fire and allowing it to spread uncontrollably. Fires grow and spread mainly due to the transfer of heat from one area to another, igniting new materials and intensifying the danger. Therefore, knowing the methods of heat transfer — conduction, convection, and radiation — is critical for effective fire prevention, containment, and firefighting.
Contents
1. Conduction in Fire Safety
Conduction is the process by which heat is transferred directly through a material without any movement of the material itself. In fire safety, conduction plays a significant role in the unseen spread of fires.
How It Works:
- Heat travels through solid materials, such as metal pipes, steel beams, or walls.
- Even if a fire is confined to one room, heat conducted through metal fixtures or walls can ignite flammable materials in other areas.
Fire Safety Implications:
- Metal structures like beams or wires can transfer heat quickly to other parts of a building.
- Hot surfaces may ignite combustibles even without a visible flame.
- Fire-resistant materials (like fire-rated doors, walls, and insulation) are essential to block conduction pathways.
Example:
- A fire on one floor of a building can cause metal pipes to conduct heat to upper floors, leading to ignition above the original fire.
2. Convection in Fire Safety
Convection is the transfer of heat by the movement of fluids — in the case of fires, air and smoke.
How It Works:
- Hot air rises, carrying heat and smoke upward.
- As heated air moves, it can bring enough heat to ignite other surfaces far from the original flame.
Fire Safety Implications:
- Smoke and heat travel upward through stairwells, elevator shafts, and vents — a major risk in multi-story buildings.
- Flashover (a rapid spread of fire within a room) often results from convection currents heating the entire space.
- Proper design of fire barriers, sealed floors, and ventilation systems helps to control and limit convection-driven fire spread.
Example:
- In a house fire, the smoke and hot gases can rapidly fill upper floors even if the fire is initially contained to the ground floor.
3. Radiation in Fire Safety
Radiation transfers heat through electromagnetic waves, without needing a medium like air or solid materials.
How It Works:
- Heat radiates outward from a hot object or flame.
- Nearby surfaces can absorb the radiant energy and ignite without direct contact.
Fire Safety Implications:
- Fires can spread across open spaces by radiation alone.
- Radiated heat from one burning building can ignite another nearby structure.
- Using fire-resistant barriers, sprinkler systems, and adequate spacing between buildings can reduce risks from radiation.
Example:
- In urban fires, intense radiant heat from a burning building can cause adjacent buildings to catch fire even if separated by a road or alley.
Why Understanding Heat Transfer is Essential for Fire Safety
✅ Early Detection and Prevention: Knowing how heat moves helps in predicting where a fire may spread, allowing for better preventive strategies.
✅ Building Design and Materials: Engineers use fire-resistant materials and designs to interrupt heat transfer routes.
✅ Effective Firefighting Tactics: Firefighters apply water or foam not just to flames, but to cool surrounding materials that might ignite due to conduction, convection, or radiation.
✅ Safe Evacuation Planning: Understanding how smoke and heat rise and move guides the placement of emergency exits and smoke vents.
✅ Reducing Secondary Ignitions: Preventing heat transfer minimizes the risk of hidden fires starting in remote areas from the original source.
Understanding the methods of heat transfer — conduction, convection, and radiation — is essential for effective fire safety strategies. Fire doesn’t just spread through direct contact with flames; it moves invisibly through structures and air, often fueled by the basic principles of thermal energy transfer.
By designing smarter buildings, planning better evacuation routes, choosing the right materials, and training in fire dynamics, we can drastically reduce the devastation fires cause and save countless lives.
