Flammability is a critical property of gases, particularly when assessing risks related to fire and explosion in industrial and domestic settings. One of the key safety parameters used to evaluate the fire hazard of gases and vapors is the limits of flammability. These limits define the concentration range within which a gas can ignite or explode in the presence of an ignition source such as a flame, spark, or hot surface.
Contents
Understanding the Limits of Flammability
The Limits of Flammability, also referred to as explosive limits, include two key values:
1. LEL / LFL (Lower Explosive Limit / Lower Flammable Limit)
The LEL (Lower Explosive Limit), also known as the LFL (Lower Flammable Limit), is the minimum concentration of a flammable gas or vapor in air that can ignite when an ignition source is present. Below this concentration, the mixture is too “lean” to burn — there is not enough fuel for combustion to occur.
Example: For methane, the LEL is approximately 5%. This means that if methane concentration in air is below 5%, it will not ignite.
2. UEL / UFL (Upper Explosive Limit / Upper Flammable Limit)
The UEL (Upper Explosive Limit), also known as the UFL (Upper Flammable Limit), is the maximum concentration of a gas in air that can still ignite. Above this concentration, the mixture is too “rich” to burn — there is too much fuel and not enough oxygen to support combustion.
Example: For methane, the UEL is about 15%. Concentrations above this are too fuel-rich to ignite.
Flammability Range
The flammability range is the span between the LEL and the UEL. It represents the concentration range within which a gas-air mixture is capable of burning or exploding if ignited.
Flammability Range = UEL – LEL

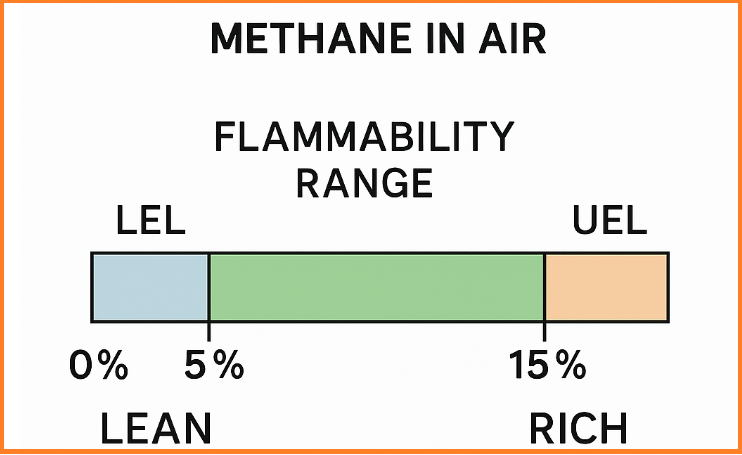

Using methane again as an example, the flammability range is 5% to 15%, meaning any concentration of methane in air within this range can potentially ignite in the presence of a spark or flame.
Why Limits of Flammability Matter
Understanding and monitoring the flammability limits of gases is essential for:
- Industrial Safety: Preventing fires and explosions in chemical plants, refineries, and manufacturing facilities.
- Hazardous Area Classification: Designing electrical systems and choosing appropriate equipment for areas where flammable gases might be present.
- Emergency Response: Helping fire departments and hazardous materials teams assess and manage risks.
- Gas Detection Systems: Setting appropriate alarm thresholds for gas detectors.
The limits of flammability—LEL/LFL and UEL/UFL—define the safe operating range for handling flammable gases. Staying outside of this range is crucial to prevent fire and explosion hazards. Accurate measurement and control of gas concentrations in workplaces are vital to ensure safety and compliance with regulations.
