Energy Trace and Barrier Analysis (ETBA) is a structured method used to systematically identify and evaluate the flow of energy within a system and assess the effectiveness of the barriers in place to control or contain that energy. Originally developed to enhance safety in high-risk industries, ETBA is now widely used across various sectors to improve hazard identification, risk management, and accident prevention.
Contents
Understanding Energy in System
At the heart of ETBA is the concept that all systems involve the generation, transformation, or transfer of energy. Uncontrolled or unexpected releases of energy are often the root cause of accidents and incidents in industrial settings. ETBA focuses on understanding these energy dynamics and implementing barriers to control them.
Types of Energy Commonly Found in Systems:
- Mechanical Energy: From moving machinery, rotating equipment, or stored kinetic energy in springs.
- Electrical Energy: Power sources, wiring, and energized equipment.
- Chemical Energy: Flammable substances, reactive chemicals, or stored fuels.
- Thermal Energy: Heat from combustion, friction, or heated processes.
- Pneumatic and Hydraulic Energy: Pressurized systems using air or fluids.
- Radiant and Nuclear Energy: Less common, but critical in certain industries like healthcare and power generation.
Energy Flow and Barrier
Energy Flow:
ETBA involves tracing how energy moves through a system—from the source, through equipment, and potentially to workers or the environment. This flow may be intentional, such as power supplied to a machine, or unintentional, like a leak or short circuit.
Barriers:
Barriers are any measures or mechanisms designed to control, contain, or mitigate energy. These can include:
- Physical Barriers: Guards, insulation, containment vessels.
- Safety Devices: Fuses, interlocks, emergency shut-offs.
- Procedural Controls: Lockout/tagout procedures, training, maintenance routines.
- Administrative Controls: Signage, supervision, permit-to-work systems.

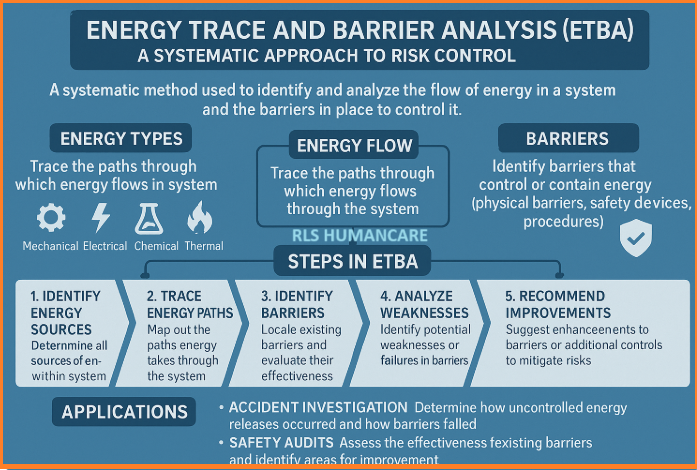

Steps in Energy Trace and Barrier Analysis (ETBA)
ETBA follows a clear, structured sequence of steps:
1. Identify Energy Sources
Begin by identifying all energy sources within the system. This includes both active (e.g., operating motors) and latent sources (e.g., stored pressure or tension).
2. Trace Energy Paths
Map out the route that each form of energy takes throughout the system. Consider both normal operations and potential abnormal conditions.
3. Identify Barriers
Determine where barriers exist along the energy paths. Document their type, purpose, and location.
4. Analyze Weaknesses
Evaluate the effectiveness of each barrier. Identify any potential weaknesses, such as outdated equipment, human error potential, or inadequate procedures.
5. Recommend Improvements
Propose enhancements to existing barriers or introduce new controls to better manage energy and reduce the risk of accidental release or exposure.
Applications of ETBA
1. Accident Investigation
ETBA is a powerful tool in post-incident analysis. By tracing energy paths and evaluating barriers, investigators can determine how uncontrolled energy was released and where containment failed.
2. Safety Audits
Regular ETBA-based audits help organizations assess their energy control systems, uncover hidden hazards, and ensure barriers remain effective over time.
3. Risk Management
ETBA supports proactive risk management by identifying energy-related hazards before incidents occur and guiding the implementation of robust control measures.
Conclusion
Energy Trace and Barrier Analysis (ETBA) is a valuable methodology for identifying and controlling risks associated with energy flow in systems. By systematically mapping out energy paths and evaluating the barriers in place, ETBA helps organizations enhance safety, reduce incidents, and foster a culture of continuous improvement. Whether used in design, operation, or incident review, ETBA provides a clear, practical framework for managing complex energy interactions in any environment.
